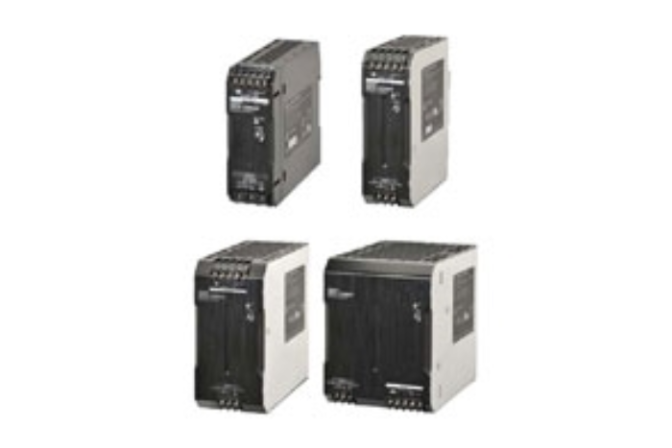

| Power ratings | 60 W | 120 W | 240 W | 480 W | ||
|---|---|---|---|---|---|---|
| Output voltage (VDC) | 24 V | 24 V | 24 V | 24 V | ||
| Efficiency (Typical) | 230 VAC input | 0.88 | 0.88 | 0.87 | 0.91 | |
| Input | Voltage *1 | 100 to 240 VAC, 90 to 350 VDC (allowable range: 85 to 264 VAC) *6 | ||||
| Frequency *1 | 50/60 Hz (47 to 450 Hz) | 50/60 Hz (47 to 63 Hz) | ||||
| Current
(Typical) |
115 VAC input | 1.0 A | 2.2 A | 2.5 A | 4.8 A | |
| 230 VAC input | 0.7 A | 1.4 A | 1.3 A | 2.4 A | ||
| Power
factor (Typical) *7 |
230 VAC input | 0.44 | 0.45 | 0.92 | 0.97 | |
| Harmonic current emissions | --- | Conforms to EN61000-3-2 | ||||
| Leakage
current (Typical) |
115 VAC input | 0.19 mA | 0.19 mA | 0.24 mA | 0.26 mA | |
| 230 VAC input | 0.34 mA | 0.36 mA | 0.54 mA | 0.65 mA | ||
| Inrush
current (Typical) *2 |
115 VAC input | 16 A | ||||
| 230 VAC input | 32 A | |||||
| Output | Voltage adjustment range
*3 |
-10% to 15% (with V.ADJ) (guaranteed) | ||||
| Ripple at
20 MHz (Typical) *4 |
230 VAC input | 70 mV | 120 mV | 150 mV | 130 mV | |
| Input variation influence | 0.5% max. (at 85 to 264 VAC input, 100% load) | |||||
| Load variation Influence
(Rated Input voltage) |
1.5% max., at 0% to 100% load | |||||
| Temperature variation
influence |
0.05%/°C max. | |||||
| Start up
time (Typical) *2 |
115 VAC input | 530 ms | 800 ms | 790 ms | 770 ms | |
| 230 VAC input | 410 ms | 760 ms | 750 ms | 670 ms | ||
| Hold time
(Typical) *2 |
115 VAC input | 24 ms | 27 ms | 34 ms | 21 ms | |
| 230 VAC input | 117 ms | 128 ms | 36 ms | 22 ms | ||
| Additional
functions |
Overload protection *2 | 105% to 160% of rated load current | ||||
| Overvoltage protection *2 | Yes *5 | |||||
| Parallel operation | No | |||||
| Series operation | Possible for up to two Power Supplies (with external diode) | |||||
| Others | Ambient operating
temperature |
-25 to 60°C (Refer to Engineering Data) | ||||
| Storage temperature | -25 to 65°C | |||||
| Ambient operating humidity | 20% to 90% (Storage humidity: 10% to 95%) | |||||
| Dielectric strength
(detection current: 20 mA) |
3.0 kVAC for 1 min. (between all inputs and outputs)
2.0 kVAC for 1 min. (between all inputs and PE terminal) 1.0 kVAC for 1 min. (between all outputs and PE terminal) |
|||||
| Insulation resistance | 100 MΩ min. (between all outputs and all inputs/PE terminals) at 500 VDC | |||||
| Vibration resistance | 10 to 55 Hz, 0.375-mm single amplitude for 2 h each in X, Y, and Z
directions |
|||||
| 10 to 150 Hz, 0.35-mm single amplitude (5 G max for 60W, 120W, 240 W,
3 G max for 480 W) for 80 min. each in X, Y, and Z directions |
||||||
| Shock resistance | 150 m/s2, 3 times each in ±X, ±Y, and ±Z directions | |||||
| Output indicatior | Yes (color: green), lighting from 80% to 90% or more of rated voltage | |||||
| EMI | Conducted
Emission |
Conforms to EN61204-3 EN55011 Class A and based on FCC Class A | ||||
| Radiated
Emission |
Conforms to EN61204-3 EN55011 Class A | |||||
| EMS | Conforms to EN61204-3 high severity levels | |||||
| Safety standards | UL Listed: UL508 (Listing)
UL UR: UL No. 62368-1 (Recognition) cUL: CSA C22.2 No.107.1 cUR: CSA C22.2 No.62368-1 EN: EN 62477-1, EN 62368-1 BIS: IS 13252 (Part1) |
|||||
| Fulfilled Standards | SELV (EN 62368-1/EN 62477-1/UL No. 62368-1) | |||||
| Degree of protection | IP20 by EN/IEC60529 | |||||
| SEMI | F47-0706 (200 to 240 VAC) | |||||
| Weight | 260 g | 580 g | 940 g | 1,550 g | ||
