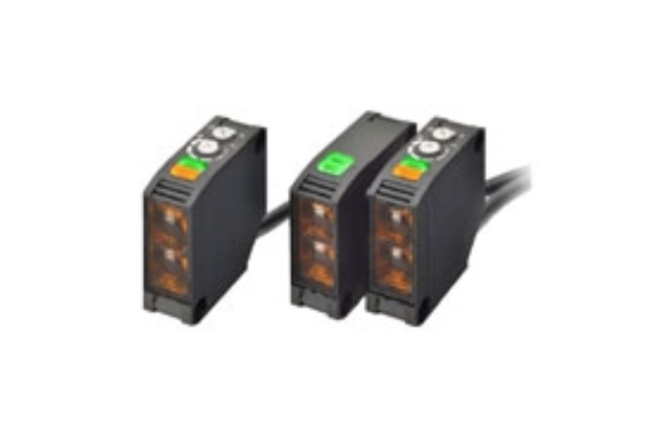

Built-in Power Supply Photoelectric Sensor
E3JK
Download and Discover Our Products
- Long sensing distance that is approximately 8 times that of our conventional model (for the Through-beam and Diffuse-reflective models).(Through-beam: 40 m, Retro-reflective: 7 m, and Diffuse-reflective: 2.5 m.)
- Improved visibility: A red LED that makes the spot visible.Large indicators that can be seen even from a distance.
- Improved operability.(Enlarged sensitivity adjuster and operation selector)
- Freely selectable power supply input (24 to 240 VDC, 24 to 240 VAC).(Additional types added to the DC type lineup.)
- Models with infrared LEDs are also available.
| Sensing method | Through-beam | ||||
|---|---|---|---|---|---|
| Model | E3JK-TR11-[] | E3JK-TR12-[] | E3JK-TR13-[] | E3JK-TR14-[] | |
| Sensing distance | 40 m | 5 m | 40 m | 5 m | |
| Standard sensing object | Opaque: 17-mm dia. min. | ||||
| Differential travel | - | ||||
| Directional angle | Both Emitter and Receiver 3° min. | ||||
| Light source (wavelength) | Red LED (624 nm) | Infrared LED (850 nm) | |||
| Power supply voltage | 24 to 240 VDC ±10%, ripple (p-p): 10% max. 24 to 240 VAC ±10%, 50/60 Hz | ||||
| Power consumption | DC | 3 W max. (Emitter 1.5 W max. Receiver 1.5 W max.) | |||
| AC | 3 W max. (Emitter 1.5 W max. Receiver 1.5 W max.) | ||||
| Control output | Relay output SPDT, 250 VAC, 3 A max. (cosϕ= 1), 5 VDC, 10 mA min., Light-ON/Dark-ON selectable | ||||
| Protection circuits | - | ||||
| Life expectancy (relay output) | Mechanical | 50,000,000 times min. (switching frequency: 18,000 times/h) | |||
| Electrical | 100,000 times min. (switching frequency: 1,800 times/h) | ||||
| Response time | 20 ms max. | ||||
| Sensitivity adjustment | One-turn adjuster Receiver (E3JK-TR1[]-D) only | ||||
| Ambient illumination (Receiver side) | Incandescent lamp: 3,000 lx max., Sunlight: 11,000 lx max. | ||||
| Ambient temperature range | Operating: -25°C to 55°C, Storage: -40°C to 70°C (with no icing or condensation) | ||||
| Ambient humidity range | Operating: 35% to 85%, Storage: 35% to 95% (with no condensation) | ||||
| Insulation resistance | 20 MΩ min. at 500 VDC | ||||
| Dielectric strength | 1,500 VAC, 50/60 Hz for 1 min | ||||
| Vibration resistance | Destruction | 10 to 55 Hz with a 1.5 mm double amplitude for 2 hours each in X, Y, and Z directions | |||
| Malfunction | 10 to 55 Hz with a 1.5 mm double amplitude for 2 hours each in X, Y, and Z directions | ||||
| Shock resistance | Destruction | 500 m/s2 for 3 times each in X, Y, and Z directions | |||
| Malfunction | 100 m/s2 for 3 times each in X, Y, and Z directions | ||||
| Degree of protection | IEC 60529 IP64 | ||||
| Connection method | Pre-wired (standard length: 2 m) | ||||
| Weight (packed state) | Approx. 350 g | ||||
| Material | Case | ABS (Acrylonitrile Butadiene Styrene) | |||
| Lens/Display window | Methacrylic resin | ||||
| Adjuster | POM | ||||
| Cable | PVC | ||||
| Bending radius of cable | R18 | ||||
| Accessories | Instruction manual and Mounting Bracket (E3JK-TR1[]-C only) | ||||
