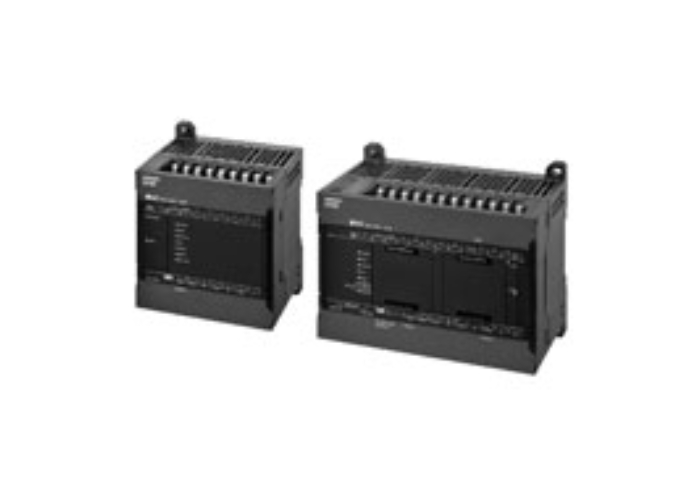

CP series CP2E CPU Unit
CP2E
Download and Discover Our Products
- Two built-in Ethernet ports with Ethernet switching function: Ready for Machine to Machine communication (CP2E-N type)
- Up to three serial ports: Open connectivity to serial devices (CP2E-N type)
- Four-axis positioning function with linear interpolation (CP2E-N type)
- Battery-free operation and backup reduce maintenance
- Function blocks and structured text improve programming efficiency
- Operating temperature range from -20 to 60 °C for reliable use in special applications
- Input/output terminal LED indicators for quick troubleshooting
| Item | AC power supply | DC power supply | |
|---|---|---|---|
| Model | CP2E-[][][]D[]-A | CP2E-[][][]D[]-D | |
| Enclosure | Mounted in a panel | ||
| Dimensions (H × D × W) | CPU Unit with 14 or 20 I/O points (CP2E-[]14/20D[]-[]): 90mm *1 ×80mm *2
× 86mm CPU Unit with 30 I/O points (CP2E-[]30D[]-[]): 90mm *1 × 80mm *2 × 130mm CPU Unit with 40 I/O points (CP2E-[]40D[]-[]): 90mm *1 × 80mm *2 × 150mm CPU Unit with 60 I/O points (CP2E-[]60D[]-[]): 90mm *1 × 80mm *2 × 195mm |
||
| Weight | CPU Unit with 14 I/O points (CP2E-[]14D[]-[]): 335g max.
CPU Unit with 20 I/O points (CP2E-[]20D[]-[]): 340g max. CPU Unit with 30 I/O points (CP2E-[]30D[]-[]): 580g max. CPU Unit with 40 I/O points (CP2E-[]40D[]-[]): 640g max. CPU Unit with 60 I/O points (CP2E-[]60D[]-[]): 780g max. |
||
| Electrical
specifications |
Supply voltage | 100 to 240 VAC 50/60 Hz | 24 VDC |
| Operating voltage
range |
85 to 264 VAC | 20.4 to 26.4 VDC | |
| Power
consumption |
15 VA/100 VAC max.
25 VA/240 VAC max. (CP2E-[]14/20D[]-A) |
13W max. (CP2E-[]14/20D[]-D) | |
| 50 VA/100 VAC max.
70 VA/240 VAC max. (CP2E-[]30/40/60D[]-A) |
20W max. (CP2E-[]30/40/60D[]-D) *4 | ||
| Inrush current | 120 VAC, 20 A for 8 ms max. for cold
start at room temperature 240 VAC, 40 A for 8 ms max. for cold start at room temperature |
24 VDC, 30A for 20 ms max. for cold
start at room temperature |
|
| External power
supply *3 |
Not provided. (CP2E-[]14/20D[]-A)
24 VDC, 300 mA (CP2E-[]30/40/ 60D[]-A) |
Not provided. | |
| Insulation
resistance |
20 MΩ min. (at 500 VDC) between the
external AC terminals and GR terminals |
Not csolated between primary and
secondary DC power supplies |
|
| Dielectric strength | 2,300 VAC 50/60Hz for 1 min between
AC external and GR terminals Leakage current: 5 mA max. |
Not csolated between primary and
secondary DC power supplies |
|
| Power interrupt
time |
10 ms min. | 2 ms min. | |
| Application
environment |
Ambient operating
temperature |
-20 to 60°C | |
| Ambient humidity | 10% to 90% | ||
| Atmosphere | No corrosive gas. | ||
| Ambient storage
temperature |
-20 to 75°C (excluding battery) | ||
| Altitude | 2,000 m max. | ||
| Pollution degree | 2 or less: Conforms to IEC61010-2-201. | ||
| Noise resistance | 2 kV on power supply line (Conforms to IEC61000-4-4.) | ||
| Overvoltage
category |
Category II: Conforms to IEC61010-2-201. | ||
| EMC immunity
level |
Zone B | ||
| Vibration
resistance |
Conforms to IEC60068-2-6.
5 to 8.4 Hz with 3.5-mm amplitude, 8.4 to 150 Hz Acceleration of 9.8 m/s2 for 100 min in X, Y, and Z directions (10 sweeps of 10 min each = 100 min total) |
||
| Shock resistance | Conforms to IEC60068-2-27.
147 m/s2, 3 times in X, Y, and Z directions |
||
| Terminal block | Fixed (not removable) | ||
| Terminal screw size | M3 | ||
| Applicable standards | Conforms to EC Directives, KC and UL. | ||
| Grounding method | Ground to 100Ω or less. | ||
