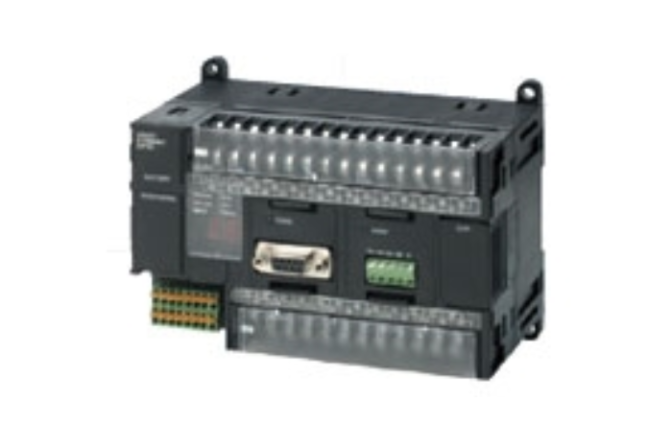

CP series CP1H CPU Unit
CP1H
Download and Discover Our Products
- Pulse output for 4 axes. Advanced power for high-precision positioning control.
- High-speed counters. Differential phases for 4 axes. Easily handles multi-axis control with a single unit.
- Eight interrupt inputs are built in. Faster processing of approximately 500 instructions speeds up the entire system.
- Serial communications. Two ports. Select Option Boards for either RS-232C or RS-485 communications.
- Ethernet Communications. Enabled by using an Option Board. Two ports can be used as an Ethernet port to perform. Ethernet communications between the CP1H and a host computer.
- Built-in Analog I/O. XA CPU Units provide 4 input words and 2 output words.
- USB Peripheral Port. Another standard feature.
- The structured text (ST) language. Makes math operations even easier.
- Can be used for the CP1W series and CJ series Unit. The extendibility of it is preeminently good.
- LCD displays and settings. Enabled using Option Board.
| Type | AC power supply models | DC power supply models |
|---|---|---|
| Model | CP1H-[][][]-A | CP1H-[][][]-D |
| Power supply | 100 to 240 VAC 50/60 Hz | 24 VDC |
| Operating voltage range | 85 264 VAC | 20.4 to 26.4 VDC
(with 4 or more Expansion Units and Expansion I/O Units: 21.6 to 26.4 VDC) |
| Power consumption | 100 VA max. (CP1H-[][][]-A) | 50 W max. (CP1H-[][][]-D) |
| Inrush current * | 100 to 120 VAC inputs:
20 A max. (for cold start at room temperature) 8 ms max. 200 to 240 VAC inputs: 40 A max. (for cold start at room temperature), 8 ms max. |
30 A max. (for cold start at room
temperature) 20 ms max. |
| External power supply | 300 mA at 24 VDC | None |
| Insulation resistance | 20 MΩ min. (at 500 VDC) between the
external AC terminals and GR terminals |
No insulation between primary and secondary
for DC power supply |
| Dielectric strength | 2,300 VAC at 50/60 Hz for 1 min between
the external AC and GR terminals, leakage current: 5 mA max. |
No insulation between primary and secondary
for DC power supply |
| Noise immunity | Conforms to IEC 61000-4-4. 2 kV (power supply line) | |
| Vibration resistance | Conforms to JIS C60068-2-6. 10 to 57 Hz, 0.075-mm amplitude, 57 to 150 Hz,
acceleration: 9.8 m/s2 in X, Y, and Z directions for 80 minutes each. Sweep time: 8 minutes × 10 sweeps = total time of 80 minutes) |
|
| Shock resistance | Conforms to JIS C60068-2-27. 147 m/s2 three times each in X, Y, and Z directions | |
| Ambient operating
temperature |
0 to 55°C | |
| Ambient humidity | 10% to 90% (with no condensation) | |
| Ambient operating
environment |
No corrosive gas | |
| Ambient storage
temperature |
-20 to 75°C (Excluding battery.) | |
| Power holding time | 10 ms min. | 2 ms min. |
